MangoBoost Demonstrates Mango GPUBoost RDMA™ with MLPerf Training v4.1 on a Multi-Node System Powered by AMD MI300X GPUs

Key Points

Introduction

Efficient GPU-to-GPU communication across multiple nodes is essential for large-scale AI training workloads, where dozens to thousands of GPUs work together to train complex models. RDMA (Remote Direct Memory Access) has emerged as a key technology for enabling this scalability, as it allows a direct data transfer between GPU memory on different nodes without the help of the CPU host significantly reducing the latency of GPU-to-GPU data transfers. Among various RDMA solutions, RoCEv2 (RDMA over Converged Ethernet) has been shown to be a promising solution that offers unique advantages over traditional Infiniband for large-scale AI training environments[1].

One of RoCEv2’s primary advantages is its scalability. Because it uses an IP header for routing, RoCEv2 can scale over larger, more complex network topologies than Infiniband. This IP-based routing capability makes RoCEv2 especially appealing in hyperscale AI infrastructures, where scalability is crucial for managing massive AI models and multi-node GPU configurations.

Another advantage of RoCEv2 is its switch radix, which directly impacts the physical layout of the AI networking infrastructure. Ethernet switches typically support more ports than Infiniband switches of the same generation, reducing the level of switches that introduces latency and potential oversubscription. With RoCEv2’s use of high-port-count Ethernet switches, system architects can create streamlined, low-latency network designs that improve data flow across the entire GPU cluster.

RoCEv2 also benefits from a broad ecosystem, with multiple vendors supporting Ethernet-based solutions. Unlike Infiniband, which is primarily produced by NVIDIA, RoCEv2 gives hyperscalers and enterprises the flexibility to choose from a variety of vendors, helping them to avoid vendor lock-in and maintain more control over their supply chain.

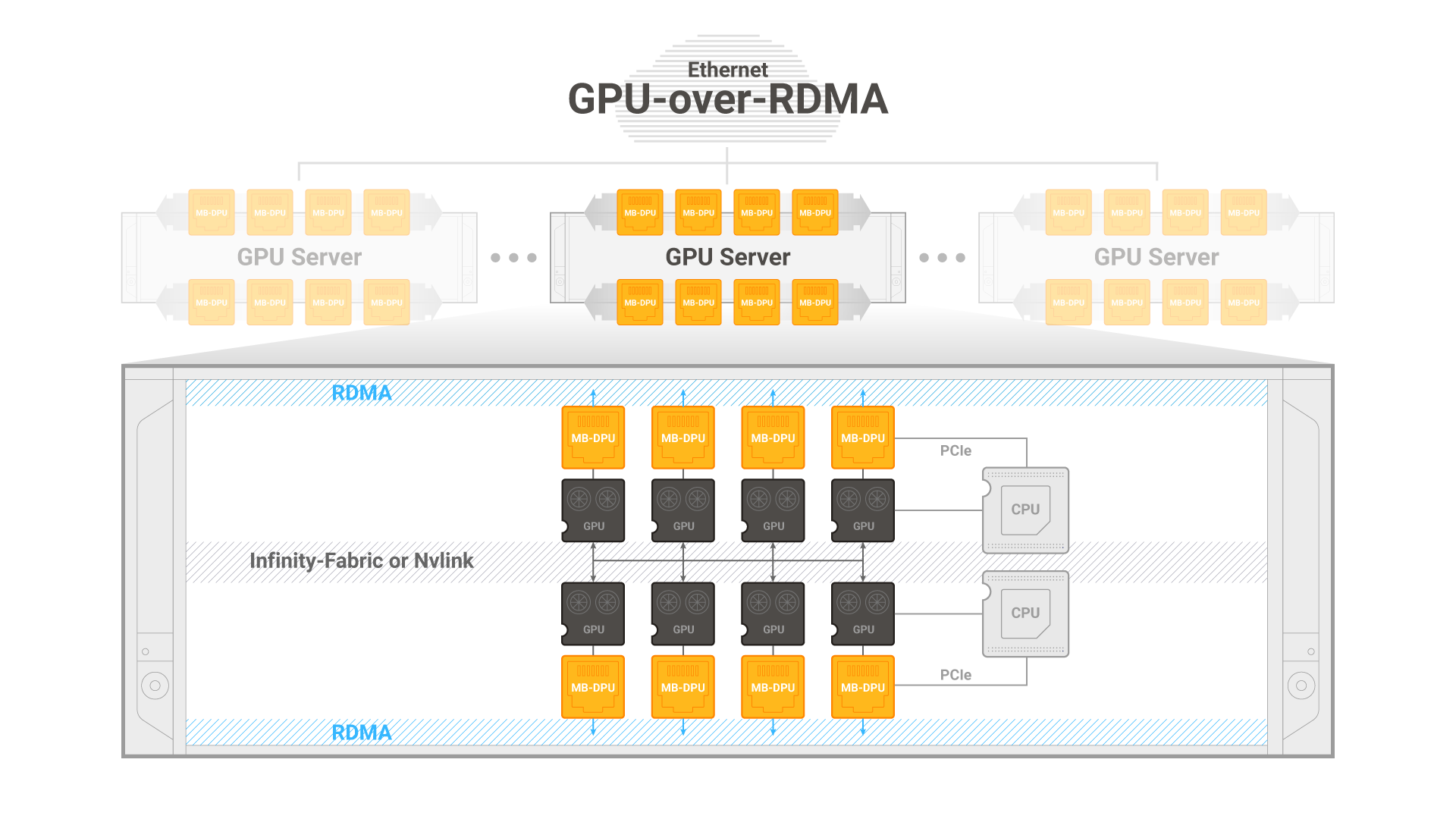

[Figure 1: Large-scale AI Training system using MangoBoost DPU]

Figure 1 shows how MangoBoost set up a large-scale AI Training system using MangoBoost DPUs. Each server is equipped with eight MangoBoost DPUs and eight GPUs, linked via PCIe for GPU-NIC communication. In this system, high-bandwidth interconnects like AMD's Infinity Fabric or NVIDIA's NVLink manage intra-node communication. For inter-node communication, MangoBoost DPUs enable RoCEv2, connecting multiple nodes over Ethernet switches and creating a high-performance and scalable setup optimized for large-scale AI workloads.

Mango GPUBoost RDMA™ enables linear performance scale-up of MLPerf Training v4.1 Llama-70B-LoRA with AMD MI300X GPUs

Our Llama-70B LoRA training leveraged from 8 to 24 MI300X GPUs with MLPerf datasets and was conducted in full compliance with the MLPerf Training v4.1 standards using BF16 precision (code provided by MLPerf). The setup focused on maximizing GPU-to-GPU communication efficiency to boost throughput. We used AMD’s Infinity Fabric for intra-node communication, while inter-node communication was powered by RoCEv2 RDMA, which is crucial for seamless scaling across multiple servers.

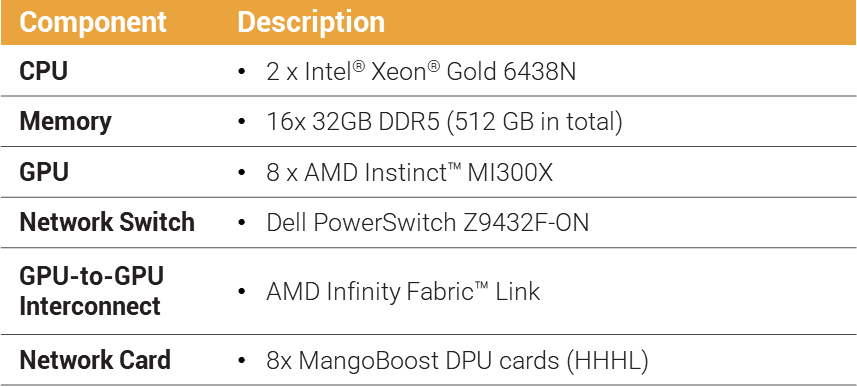

[Table1: Server Configuration]

To ensure high-efficiency RoCEv2 performance, we installed MangoBoost DPUs, assigning one DPU per GPU in each server. This 1:1 mapping enabled optimized data transfer across nodes, taking advantage of RDMA’s capabilities to support high-speed distributed training. Each server used an identical configuration, providing a robust and scalable infrastructure capable of handling the intense demands of large language model (LLM) training.

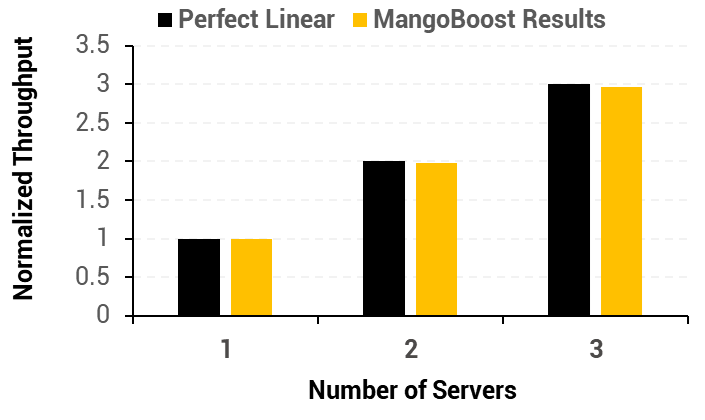

[Figure 2: Scalability test: 1-3 GPU servers (8x AMD MI300X GPUs per server), running Llama-70B LoRA training ]

Our scaling tests demonstrated near-linear performance scaling as we increased the number of servers, which is paramount in large-model training where hardware limitations and network overhead often constrain scalability. With our setup, we maintained nearly optimal performance even as additional resources were added.

Throughout the process, we ensured strict adherence to the MLPerf v4.1 validation requirements. This included following guidelines for hyperparameters, evaluation methodology, and quality targets, such as achieving a 0.925 evaluation loss threshold. We validated our setup against the Reference Convergence Point (RCP) rules, ensuring accuracy and reliability in producing high-quality training results for large language models.

Mango GPUBoost RDMA™ powers accelerated AI with industry-standard and customizable features

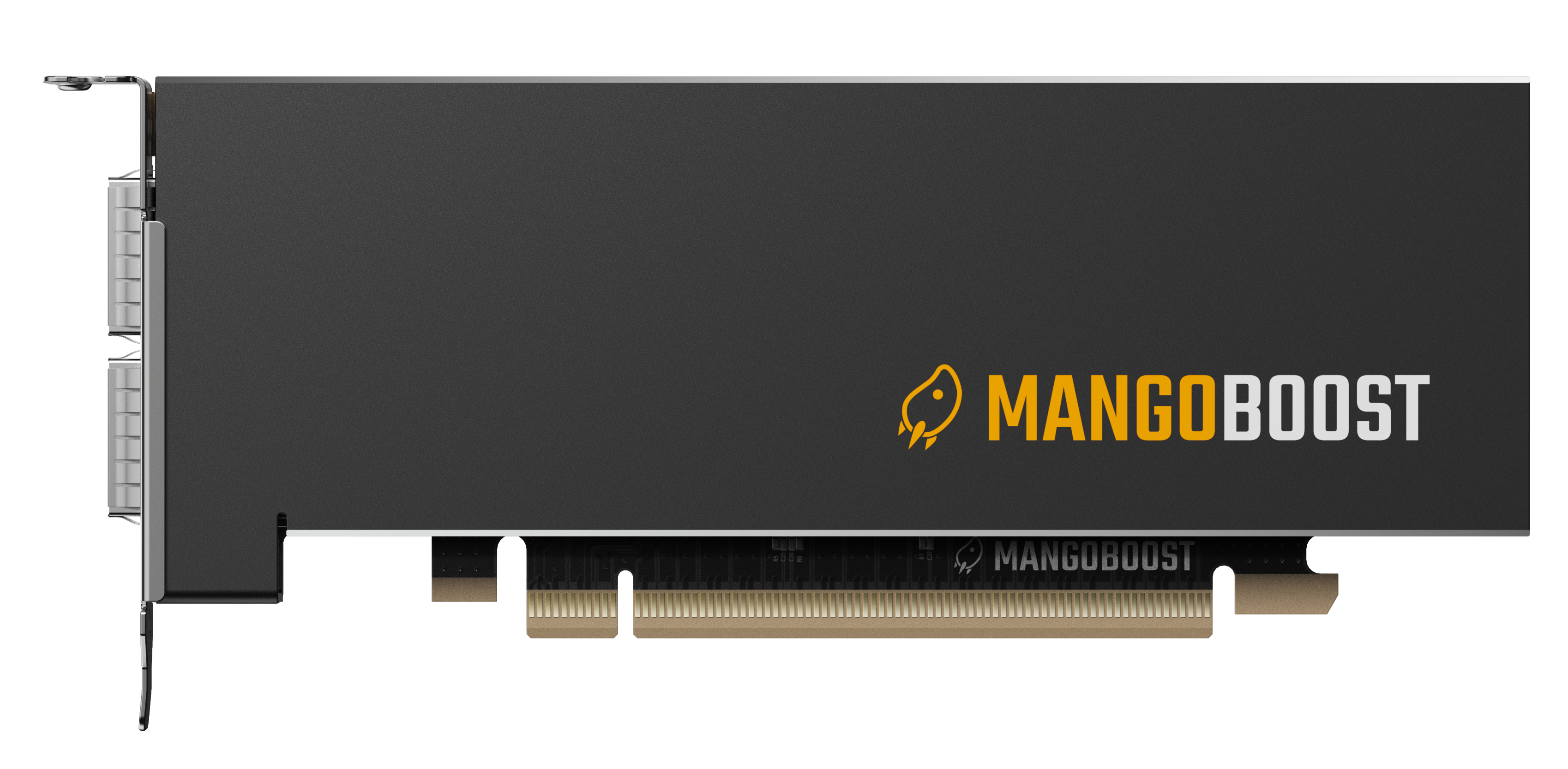

Mango GPUBoost RDMA™ is a high-performance RoCEv2-based RNIC solution that unleashes the full potential of ethernet-based large-scale AI workloads. It provides greater network scalability alongside peer-to-peer communication between GPU and RNIC (e.g., GPUDirect, ROCmRDMA) to enable optimized connectivity among GPUs at scale.

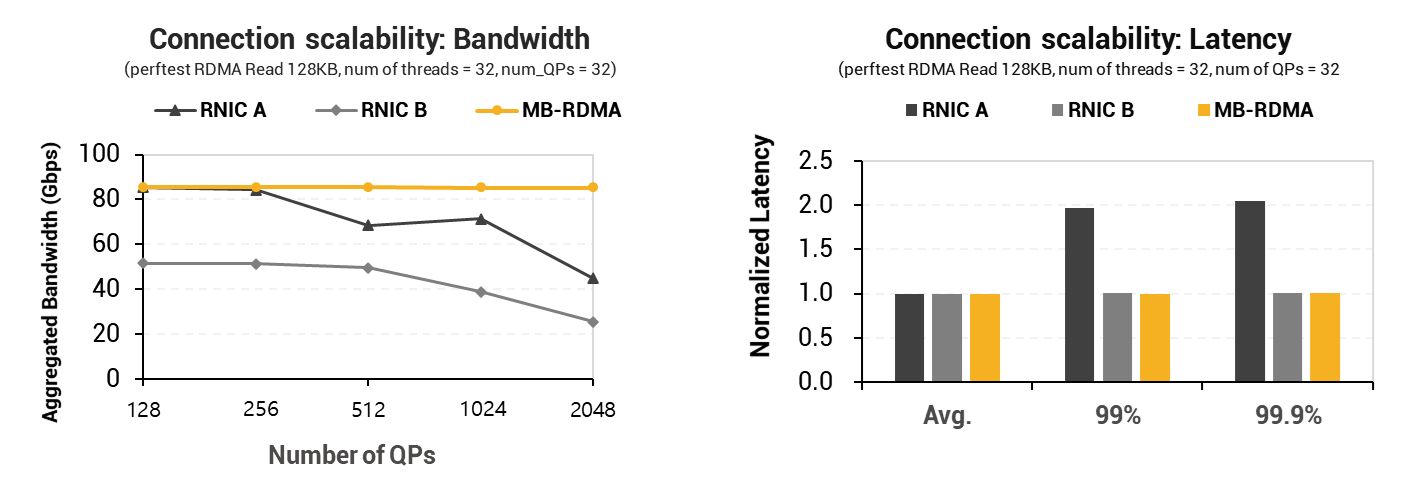

[Figure 3: Scalability test: provide better throughput and latency with many QP connections]

Mango GPUBoost RDMA™ achieves impressive performance, sustaining 90% of line-rate throughput even as the number of QP (Queue Pair) connections increases. It also delivers significantly lower latency compared to other standard RDMA network interface cards (RNICs) available on the market. Figure 3 demonstrates these advantages using results from Perftest, a widely-used RDMA benchmarking tool, where Mango GPUBoost RDMA™ achieves 3.4 times higher throughput and reduces 99.9% latency by 52%.

Mango GPUBoost RDMA™ also provides two important features (multipath and custom congestion control) to resolve well-known problems within RoCEv2.

Please check the product specification and more details here!

Try our Mango GPUBoost RDMA™ - Pre-Order is now open!

We are ready for customers who want to innovate their AI infrastructure by accelerating network communication with Mango GPUBoost RDMA™. Our DPUs have been tested on various AI training and inference workloads with top-of-the-line GPUs, demonstrating its flexibility along with industry-leading performance. We support standard RoCEv2 with customizable features and compatibility with common server products.

We continue to innovate performance and scalability in AI infrastructure. As a member of the UltraEthernet Consortium, we also plan to showcase our UltraEthernet DPU in the near future.

Pre-order here!

References
[1] RDMA over Ethernet for Distributed Training at Meta Scale (Meta, SIGCOMM’24)
[2] Multi-Path Transport for RDMA in Datacenters (Microsoft, NSDI’18)
[3] HPCC: High Precision Congestion Control (Alibaba, SIGCOMM’19)
[4] Impact of RoCE Congestion Control Policies on Distributed Training of DNNs (Meta, HOTI’22)
[5] Datacenter Ethernet and RDMA: Issues at Hyperscale (Microsoft/Broadcom/HPE/Google, IEEE Computer’23)
